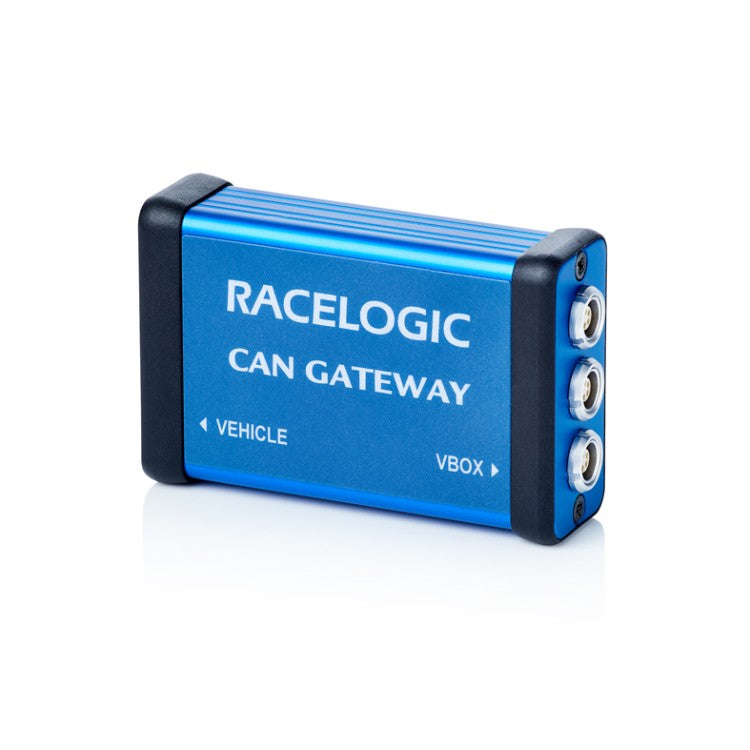

The VBOX CAN Gateway allows logging of vehicle CAN bus data in a VBOX system where secondary CAN modules such as the OLED display or analogue input modules are used.
Under normal circumstances, attempting to capture CAN data from a car as well as that from a module (such as the Mini or Micro Input Module) would lead to VBOX and VBOX Module data being put into the vehicle CAN Bus – with unpredictable and almost certainly unwanted results.
The CAN Gateway allows for both data streams to be logged by the VBOX Video HD2 without any of the module traffic going back onto the vehicle Bus.
- Product Code: RLVBCGW01
