BMW F8X – CLUBSPORT

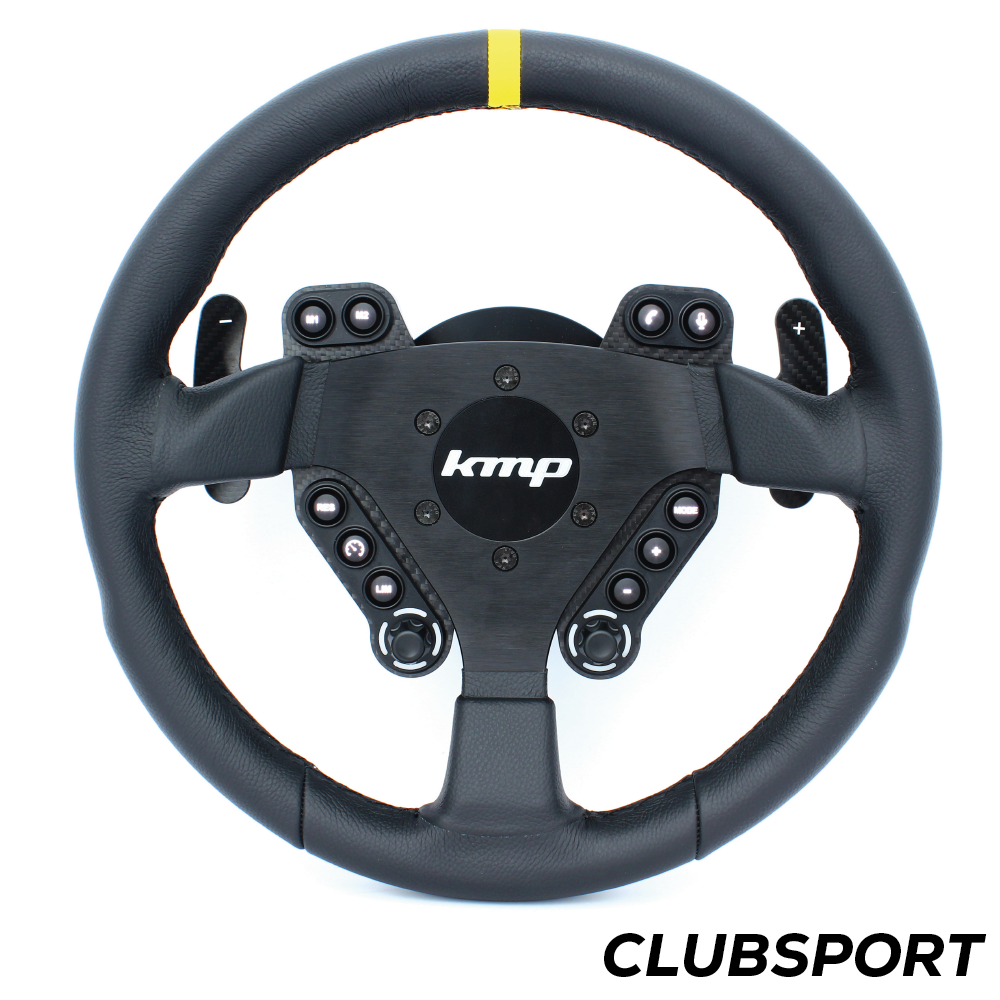

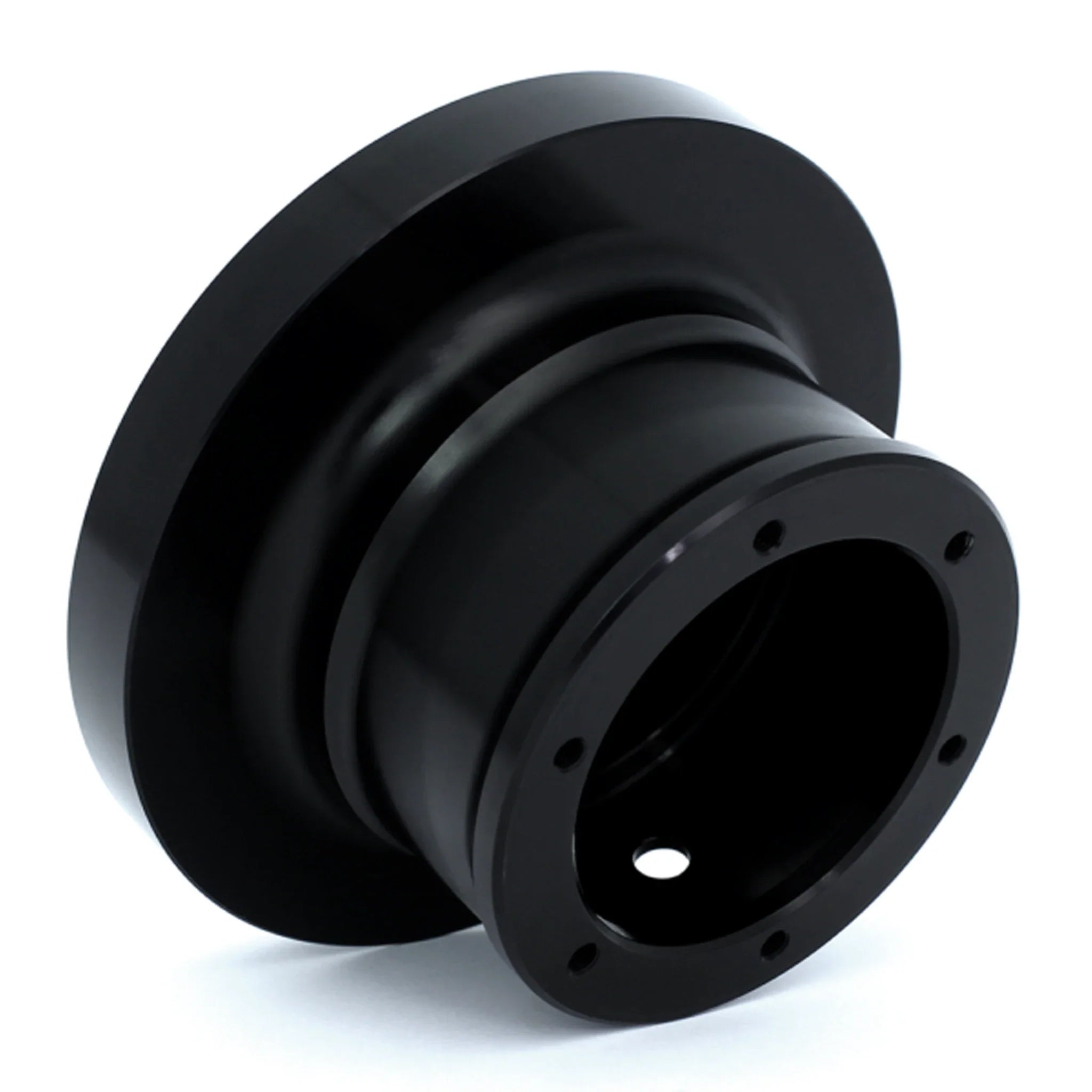

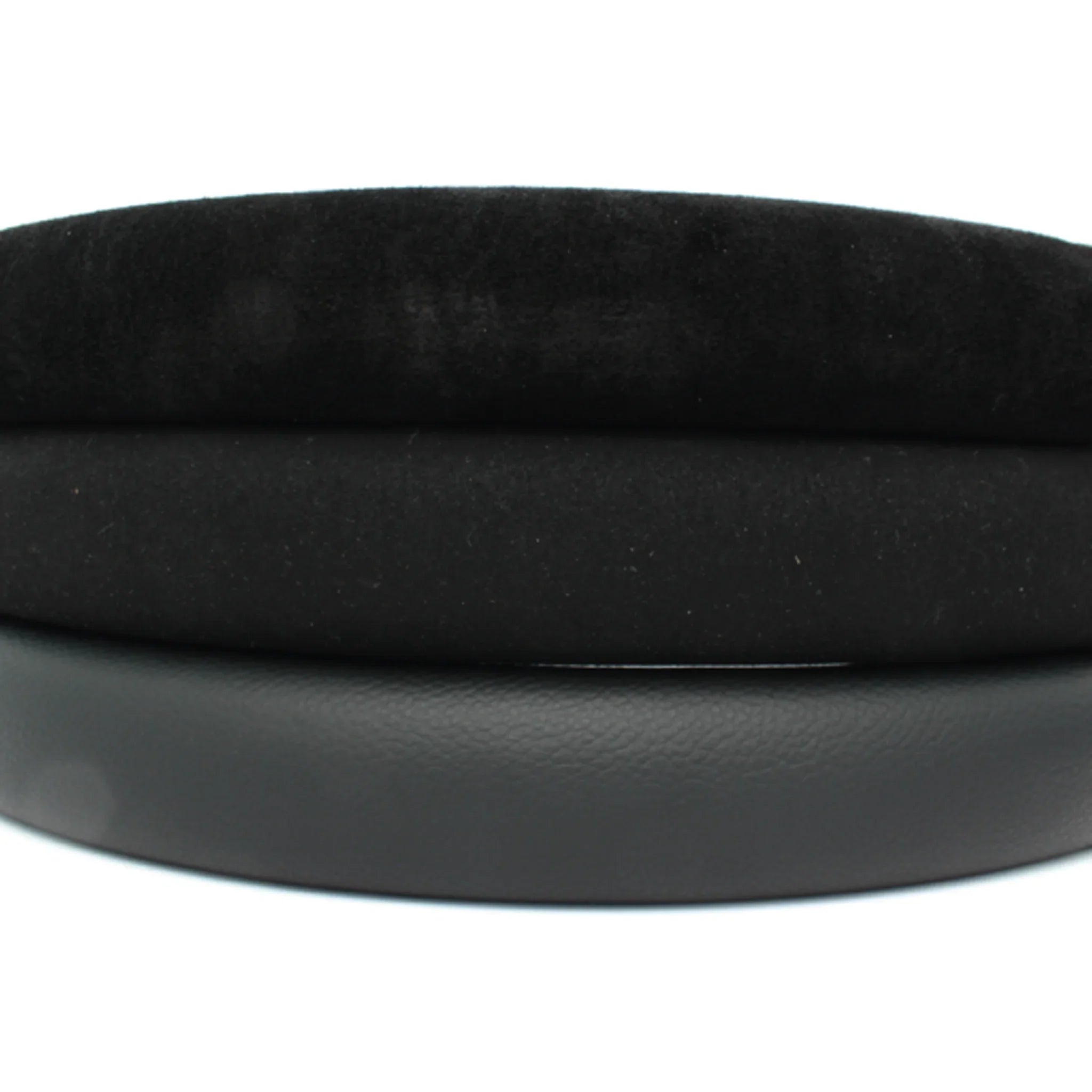

The BMW F8X Clubsport has 10 push buttons and 2 Rotary switches with push function. It has all factory steering wheel functions integrated in a unique design. The complete kit comes with hub, electronics and steering wheel itself. If needed, you can add a crash-hub or Quick release with integrated connector (completely removable). You can choose your wheel finish (suede, alcantara or leather).
Button configuration
Push buttons
Encoder right
SW1
Phone
CW
Volume +
SW2
Speak
CCW
Volume –
SW3
Reset
Push
Mode
SW4
Horn
SW5
M2
Encoder left
SW6
M1
CW
Scroll up
SW7
Cruise
CCW
Scroll down
SW8
Set
Push
Scroll press
SW9
Speed +1 /+10
SW10
Speed -1 / -10
Notes
Specific buttons are double programmed. Pressing for more than one second will activate the next function [/]
Button functions need to be present in the car from factory in order to be functional on the KMP wheel.
CLUBSPORT
The essence of the CLUBSPORT line is a compromise between street and motorsport. All factory wheel functions are available at the CLUBSPORT wheel. Specially developed push buttons with illumination and laser-etched symbols results in an elegant steering wheel with a motorsport feeling. The well-known high-tactile magnetic paddles are used on the CLUBSPORT line as well. It’s a straight-forward, easy DIY installation, without any error codes to be solved. To be cost-effective, we offer the kit without a quick release. Optional, a Crash-hub (TÜV regulations) or Quick Release with an integrated Deutsch Autosport connector can be used.
– Fixed layout for each specific car model

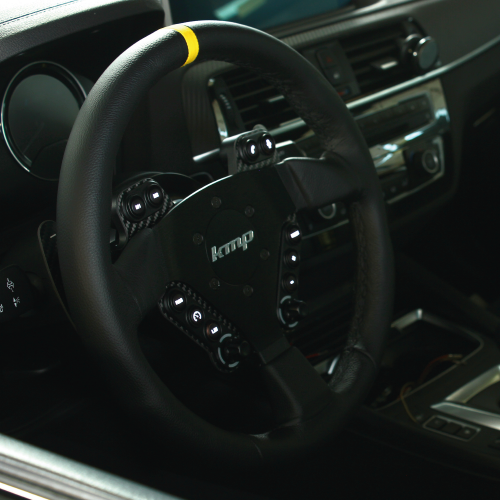

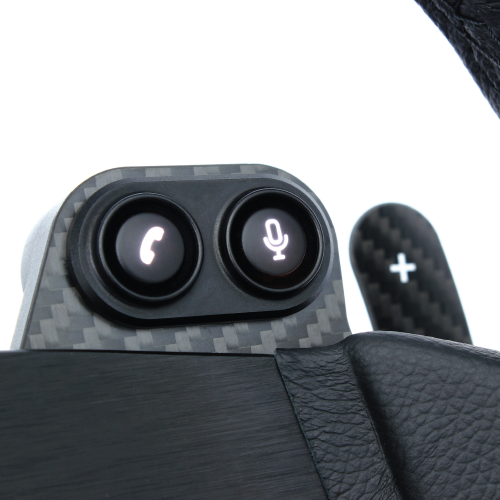

– Illuminated push buttons (dim on interior light)
– Laser-etched buttons, no stickers
– All factory wheel functions on your racing wheel
– Plug and play, no wiring needed.

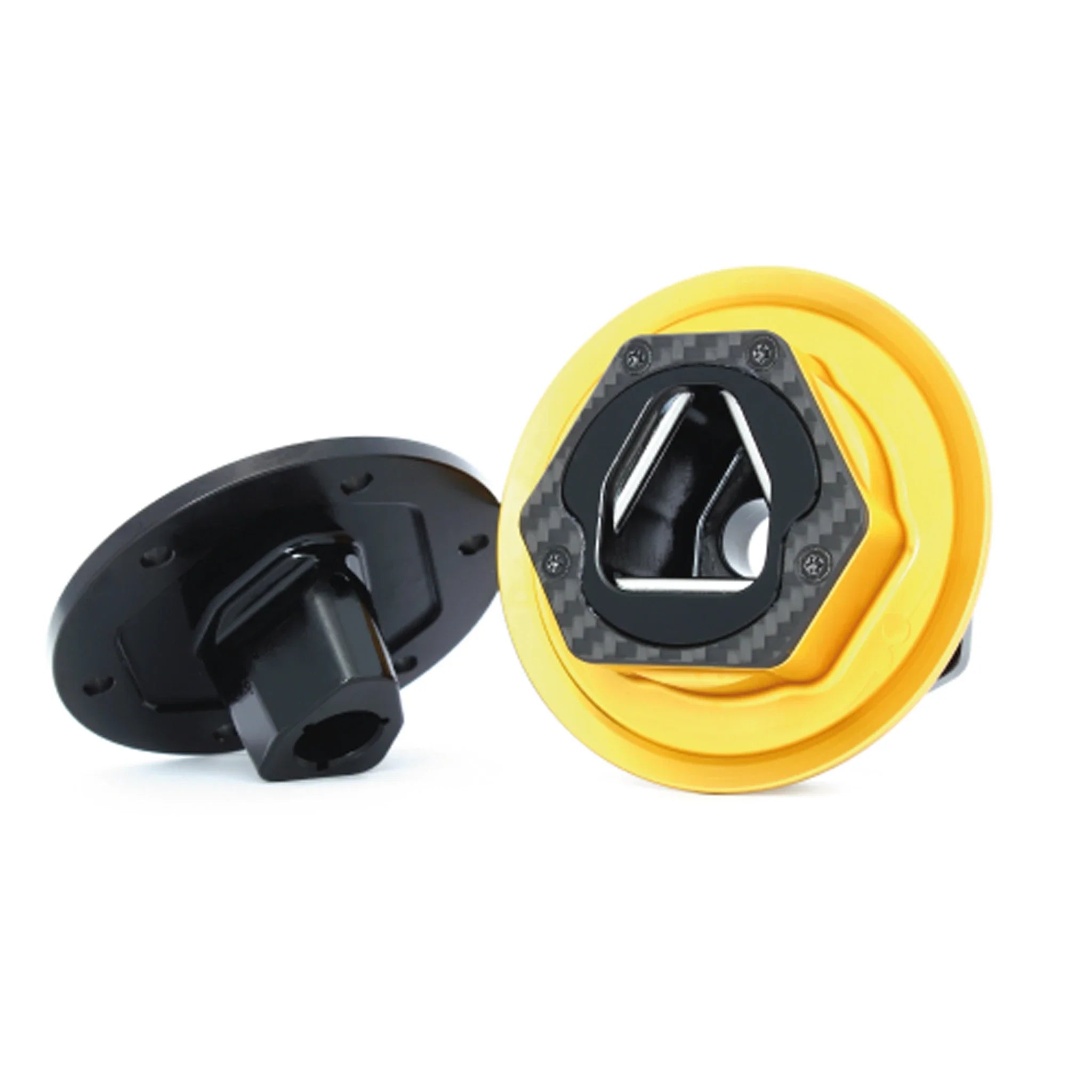

– Option for crash-hub or Quick release with connector
Clubsport variants
Besides the standard CLUBSPORT model, the CLUBSPORT Nürburgring edition is available. This is also a fixed layout, but with the most important racing controls.
We can also build a fully custom CLUBSPORT tailored to your needs. Get in contact with our sales department. Custom layouts will have additional costs.
