Product Highlights
-
+5-10hp
-
100% Pre Preg Carbon Construction
-
No ECU Tuning Required
-
Enhanced Induction Sound
-
Modular Design
-
Interchangeable Velocity Stacks
-
Larger Velocity Stacks
-
CNC Throttle Body Connectors
Design

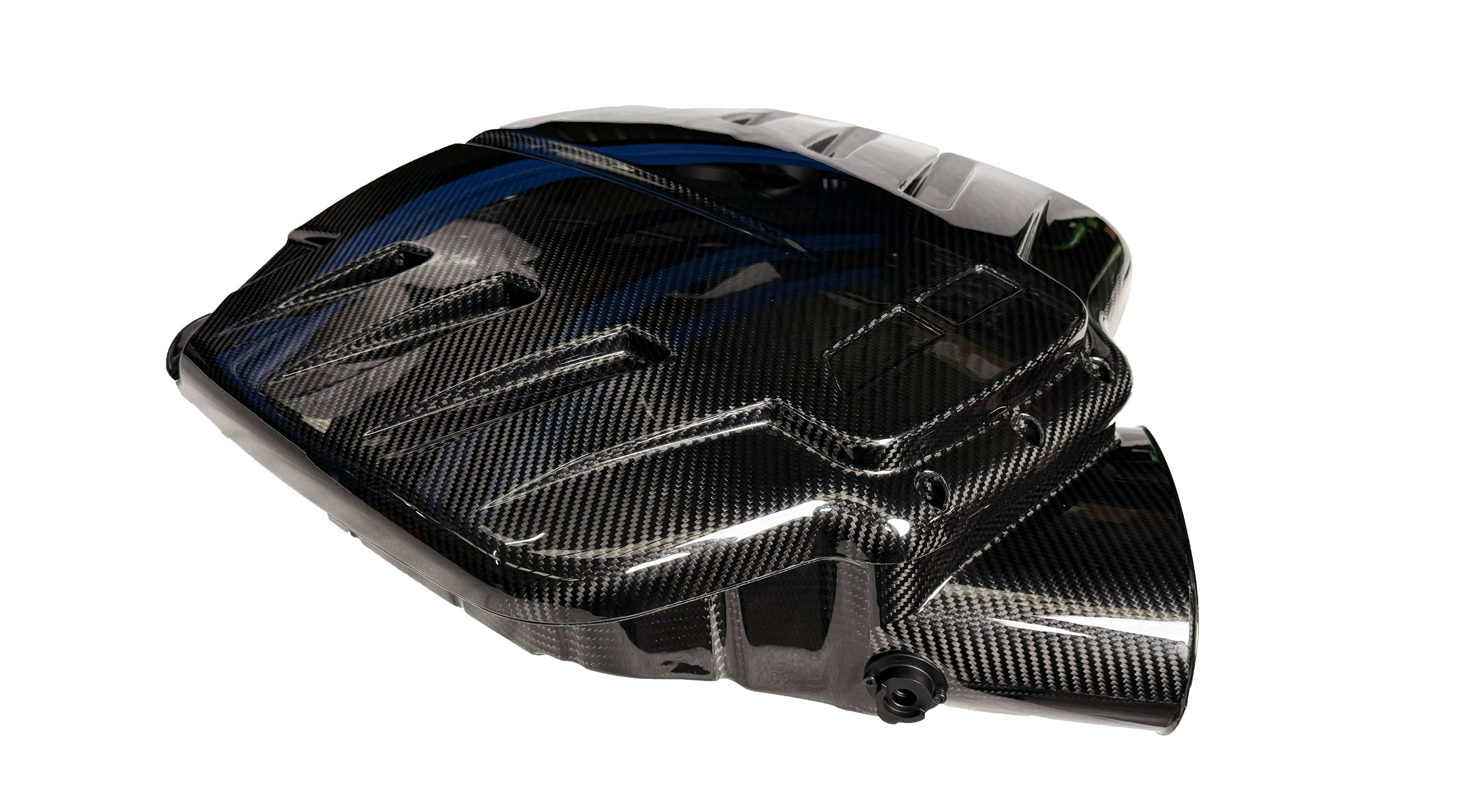

This carbon plenum is a complete redesign of the OEM S65 plenum, developed to offer more than simply a carbon copy of the factory component.
Featuring increased volume in the upper frontal section and top cover, the plenum is designed to complement the airflow characteristics of the S65 engine while delivering an improved induction sound. With a wall thickness of just 1.2mm, the carbon construction allows the engine's character and intake note to be heard in full.
The modular design allows different lids and velocity stacks to be fitted, offering flexibility for future upgrades and development.
The supplied carbon velocity stacks feature a larger opening than the OEM components and are designed to take advantage of the revised plenum design.
Performance Testing
Dyno testing was carried out under controlled conditions on an independent Dynojet dynamometer.
Testing was performed with the manufacturer's high-flow intake system already installed to allow both the OEM and upgraded plenums to operate under identical conditions.
OEM Plenum
-
340hp / 269 lb.ft
-
343hp / 268 lb.ft
Carbon Plenum
-
350hp / 269 lb.ft
-
349hp / 269 lb.ft
Recorded Gains
-
5-8hp from 5,600rpm to 6,400rpm
-
8-10hp from 6,800rpm to 8,200rpm
Features
-
Modular plenum design
-
Interchangeable lids and velocity stacks
-
Larger carbon velocity stacks
-
CNC throttle body bosses
-
OEM fitment
-
No ECU tuning required
-
Available in gloss or matte carbon finish
-
100% Pre Preg carbon construction
What is in the Box
1 x Carbon Plenum Assembly comprising of:
-
Lid
-
Main Body
-
10 x Larger Velocity Stacks
-
10 x CNC Throttle Body Bosses
-
Nuts and Bolts
